Support anchor BA-2

Support anchor, BA-1, is used together with connector pins when connecting two concrete slabs to create an insulated sandwich panel.

Support anchors are made out of stainless steel wire EN 1.4301 or stainless acid proof steel EN 1.4401. The wire is cold drawn and has a tensile strength of ƒyk ≥ 700 MPa.

Support anchor BA-2 is available in three different wire diameters:

8mm
9mm
10mm

In addition to the standard range below, additional heights and lengths can be manufactured on demand.

Installation

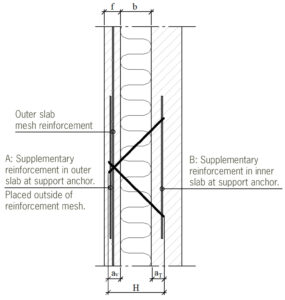

Figure 2.3 Installation of 1 pc support anchor BA-2 (BA-2-08, BA-2-09, BA-2-10)

BA-1 Can also be installed in groups of 2 or 3 pcs.

Further information about installation and load capacities can be found in Joma design guide for concrete connectors.

Article no.	Length (mm)	Height (mm)	Weight	Quantity/box	Name	CAD (requires account)
BA-2 rostfritt stål
BA-2 8 mm A2
8180088	-	180	0,526	enl. order	BA-2 8x180mm	Step
8180022	-	200	0,571	enl. order	BA-2 8x200mm	Step
8180023	-	220	0,616	enl. order	BA-2 8x220mm	Step
8180024	-	240	0,661	enl. order	BA-2 8x240mm	Step
8180025	-	260	0,705	enl. order	BA-2 8x260mm	Step
8180026	-	280	0,748	enl. order	BA-2 8x280mm	Step
8180027	-	300	0,795	enl. order	BA-2 8x300mm	Step
8180043	-	320	0841	enl. order	BA-2 8x320mm	Step
BA-2 9 mm A2
8190043	-	200	0,722	enl. order	BA-2 9x200mm	Step
8190044	-	220	0,779	enl. order	BA-2 9x220mm	Step
8190034	-	240	0,836	enl. order	BA-2 9x240mm	Step
8190035	-	260	0,892	enl. order	BA-2 9x260mm	Step
8190045	-	280	0,92	enl. order	BA-2 9x280mm	Step
8190046	-	300	0,948	enl. order	BA-2 9x300mm	Step
8190047	-	320	1,005	enl. order	BA-2 9x320mm	Step
8190048	-	340	1,128	enl. order	BA-2 9x340mm	Step
8190036	-	360	1,184	enl. order	BA-2 9x360mm	Step
8190049	-	380	1,24	enl. order	BA-2 9x380mm	Step
8190050	-	400	1,296	enl. order	BA-2 9x400mm	Step
8190051	-	420	1,353	enl. order	BA-2 9x420mm	Step
BA-2, 10 mm, A2
8110056	-	340	1,38	enl. order	BA-2 10x340mm	Step
8110094	-	360	1,47	enl. order	BA-2 10x360mm	Step
8110141	-	380	1,54	enl. order	BA-2 10x380mm	Step
8110142	-	400	1,6	enl. order	BA-2 10x400mm	Step
8110143	-	420	1,67	enl. order	BA-2 10x420mm	Step
8110144	-	440	1,74	enl. order	BA-2 10x440mm	Step
8110145	-	460	1,809	enl. order	BA-2 10x460mm	Step
8110146	-	480	1,879	enl. order	BA-2 10x480mm	Step
8110147	-	510	1,983	enl. order	BA-2 10x510mm	Step
BA-2 syrafast stål
BA-2 8 mm A4
8180126	-	180	0,526	enl. order	BA-2 8x180mm	Step
8180035	-	200	0,571	enl. order	BA-2 8x200mm	Step
8180036	-	220	0,616	enl. order	BA-2 8x220mm	Step
8180037	-	240	0,661	enl. order	BA-2 8x240mm	Step
8180038	-	260	0,705	enl. order	BA-2 8x260mm	Step
8180039	-	280	0,748	enl. order	BA-2 8x280mm	Step
8180040	-	300	0,795	enl. order	BA-2 8x300mm	Step
8180041	-	320	0,841	enl. order	BA-2 8x320mm	Step
BA-2 ,9 mm, A4
8190041	-	200	0,722	enl. order	BA-2 9x200mm	Step
8190037	-	220	0,779	enl. order	BA-2 9x220mm	Step
8190052	-	240	0,836	enl. order	BA-2 9x240mm	Step
8190038	-	260	0,892	enl. order	BA-2 9x260mm	Step
8190053	-	280	0,92	enl. order	BA-2 9x280mm	Step
8190039	-	300	0,948	enl. order	BA-2 9x300mm	Step
8190040	-	320	1,005	enl. order	BA-2 9x320mm	Step
8190021	-	340	1,128	enl. order	BA-2 9x340mm	Step
8190022	-	360	1,184	enl. order	BA-2 9x360mm	Step
8190023	-	380	1,24	enl. order	BA-2 9x380mm	Step
8190024	-	400	1,296	enl. order	BA-2 9x400mm	Step
8190042	-	420	1,353	enl. order	BA-2 9x420mm	Step
BA-2, 10 mm, A4
8110049	-	340	1,38	enl. order	BA-2 10x340mm	Step
8110093	-	360	1,47	enl. order	BA-2 10x360mm	Step
8110046	-	380	1,54	enl. order	BA-2 10x380mm	Step
8110148	-	400	1,6	enl. order	BA-2 10x400mm	Step
8110079	-	420	1,67	enl. order	BA-2 10x420mm	Step
8110149	-	440	1,74	enl. order	BA-2 10x440mm	Step
8110150	-	460	1,809	enl. order	BA-2 10x460mm	Step
8110151	-	480	1,879	enl. order	BA-2 10x480mm	Step
8110152	-	510	1,983	enl. order	BA-2 10x510mm	Step
