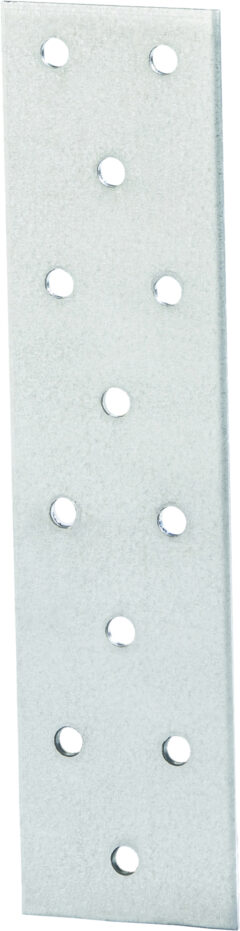

3350023 / 3450017
Jointing plates & bars (RF)
Jointing plates and bars are user mainly in beam and roof constructions
Material
2,0 mm, stainless (1.4301) or acid proof (1.4301)
Bolt holes: Ø 5,0 mm
| Art. no. 1.4301 | Art. no. 1.4404 | Thickness (mm) | Length (mm) | Width (mm) | Weight | Quantity/box | CAD (requires account) |
|---|---|---|---|---|---|---|---|

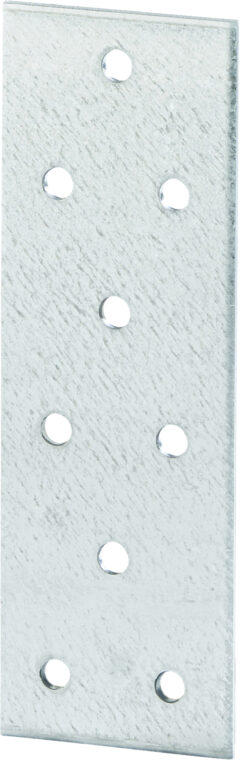

| 3350023 | 3450017 | 2,0 | 120 | 40 | 0,07 | 200 | |
| 3350017 | 3450039 | 2,0 | 160 | 40 | 0,10 | 100 | |

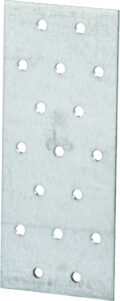

| 3350024 | 3450048 | 2,0 | 140 | 60 | 0,12 | 100 | |
| 3350016 | 3450041 | 2,0 | 160 | 60 | 0,14 | 50 | |
| 3350004 | 3450012 | 2,0 | 200 | 60 | 0,18 | 50 | |
| 3350027 | 3450009 | 2,0 | 160 | 80 | 0,19 | 50 | |

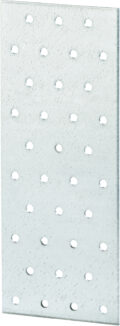

| 3350026 | 3450019 | 2,0 | 200 | 80 | 0,24 | 50 | |

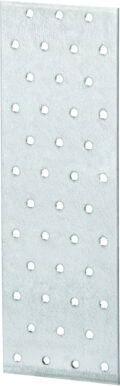

| 3350025 | 3450043 | 2,0 | 240 | 80 | 0,28 | 50 | |
| 3350076 | 3450044 | 2,0 | 160 | 100 | 0,26 | 50 | |
| 3350010 | 3450015 | 2,0 | 200 | 100 | 0,30 | 50 | |
| 3350021 | 3450045 | 2,0 | 240 | 100 | 0,34 | 50 | |
| 3350009 | 3450014 | 2,0 | 300 | 100 | 0,43 | 25 | |
| 3350015 | 3450046 | 2,0 | 200 | 120 | 0,36 | 50 | |
| 3350011 | 3450047 | 2,0 | 240 | 120 | 0,42 | 25 | |
| 3350013 | 3450029 | 2,0 | 300 | 120 | 0,53 | 25 |
