Angle bracket 4443

The angle brackets are mainly designed to withstand large upward forces but also to be strong in all other directions.

The reinforcement´s shape and the placement of the holes are optimized both for vertical posts and horizontal beams.

The angle brackets are produced with two different surface treatments. One is Magnelis with a thickness of 20μ that fulfills the requirements regarding climate class 1 & 2. The other one is hot dipped galvanized with a thickness of 50μ that fulfills the requirements regarding climate class 1,2 & 3.

Material

4,0 mm surface treated steel plate

Nail holes: Ø 5,0 mm Bolt holes: Ø 14,0 mm Service class: 2

Construction product declarations SundaHus icon byggvarubedömningen Byggvarubedömning
Article no. Thickness (mm) Length (mm) Height (mm) Width (mm) Weight Quantity/box CAD (requires account)

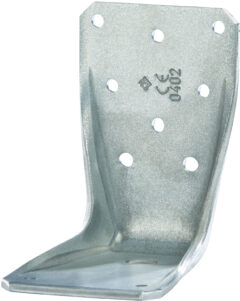

4443001 3,0 85 100 65 0,25 20

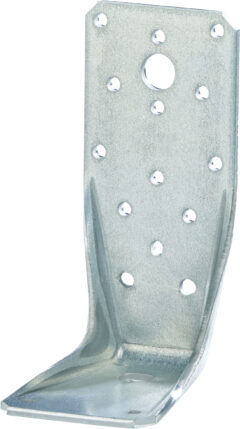

4443002 3,0 85 150 65 0,33 20

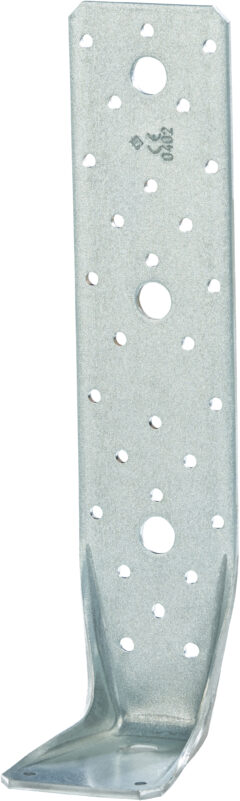

4443003 3,0 85 285 65 0,50 20

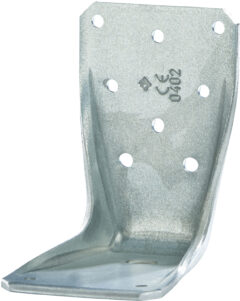

4443011 3,0 85 100 65 0,25 20

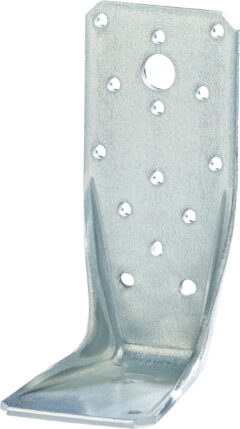

4443012 3,0 85 150 65 0,33 20

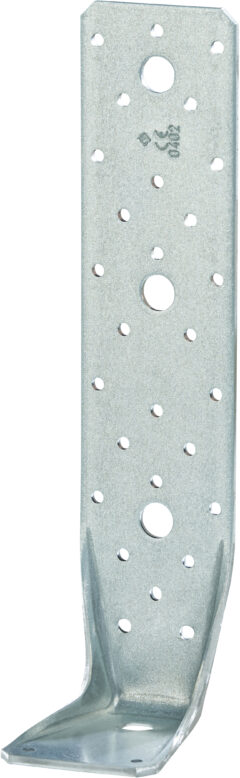

4443013 3,0 85 285 65 0,50 20
