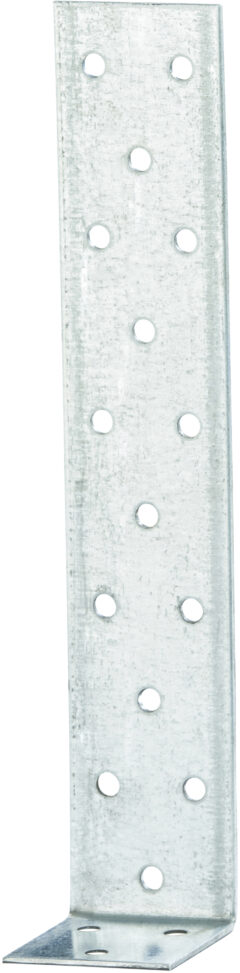

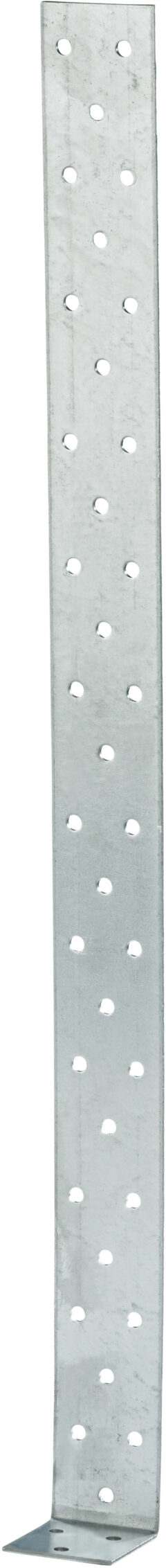

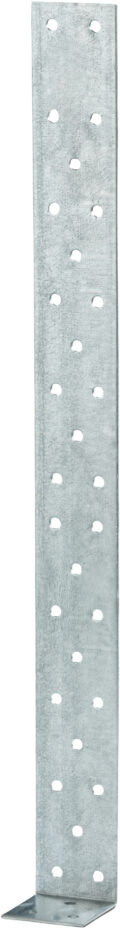

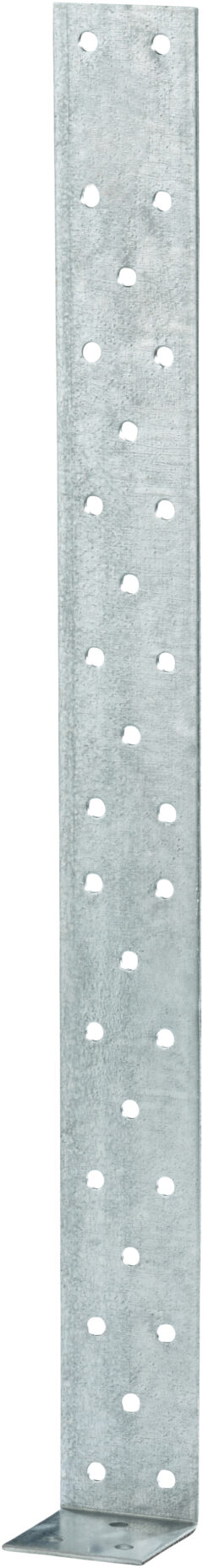

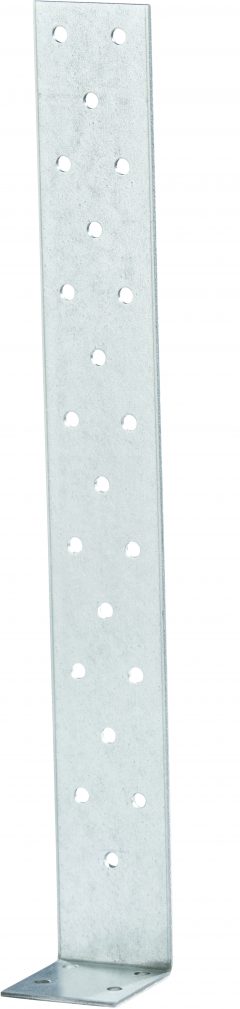

Concrete anchor strap

The anchor strap is intended for casting in concrete and fixation of wooden posts.

A reinforcement bar can be used for anchoring in the concrete.

Material

2,0 mm pre-galvanized steel plate Service class: 2

Bolt holes: Ø 5,0 mm

Article no.	Thickness (mm)	Length (mm)	Height (mm)	Width (mm)	Weight	Quantity/box
5320200	2,0	40	200	40	0,13	150
5320300	2,0	40	300	40	0,18	100
5320400	2,0	40	400	40	0,24	50
5320500	2,0	40	500	40	0,29	50
5320600	2,0	40	600	40	0,36	50
