Joist Hanger Type I
Jomas Joist Hangers are also available with inside flaps and then called Joist Hanger Type I. See picture.
Our Joist Hanger is equipped with both nail and bolt holes and can be mounted to wood, concrete, concrete or brick.
Material
2 mm galvanized steel plate
Nail holes: Ø 5,0 mm Bolt holes: Ø 9,0 mm and 11,0 mm Service class: 2
| Article no. | Thickness (mm) | Height (mm) | Width (mm) | Weight | Quantity/box | CAD (requires account) |
|---|---|---|---|---|---|---|
| For wooden beam 45 | ||||||

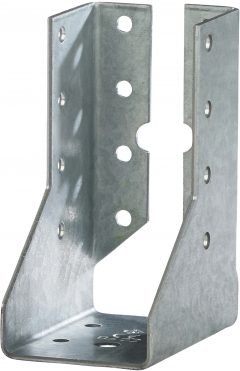

| 5245096I | 2,0 | 96 | 45 | 0,24 | 50 | |

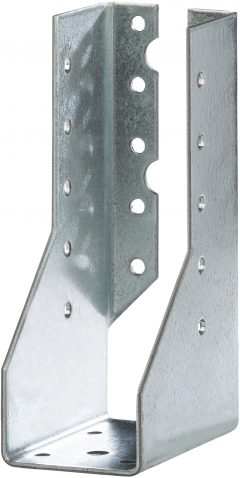

| 5245137I | 2,0 | 137 | 45 | 0,35 | 50 | |

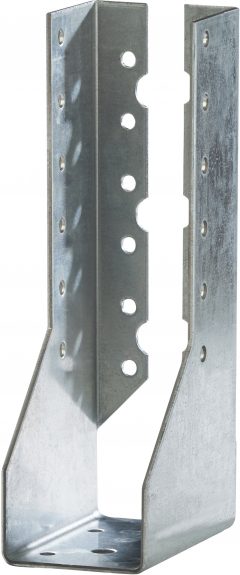

| 5245168I | 2,0 | 168 | 45 | 0,42 | 50 | |

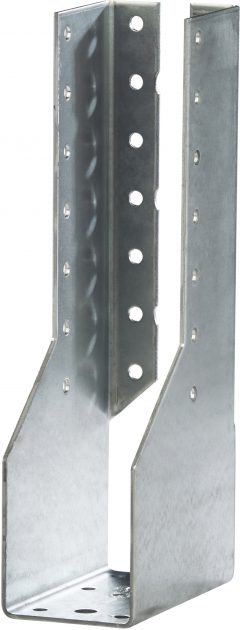

| 5245197I | 2,0 | 197 | 45 | 0,53 | 25 | |

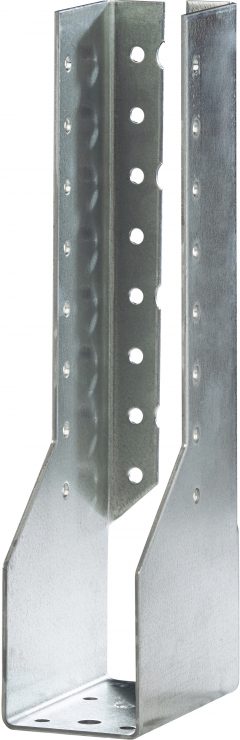

| 5245228I | 2,0 | 228 | 45 | 0,64 | 25 | |
| For wooden beam 48 | ||||||

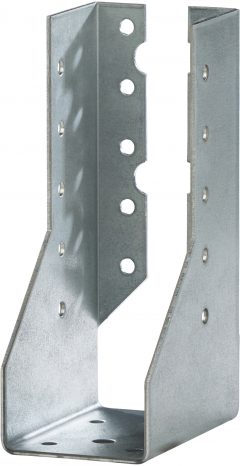

| 5248136I | 2,0 | 136 | 48 | 0,35 | 50 | |
| For wooden beam 51 | ||||||

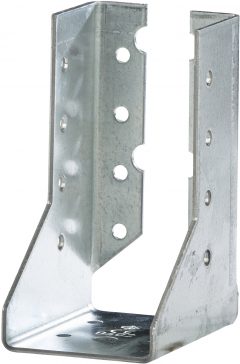

| 5251105I | 2,0 | 105 | 51 | 0,23 | 50 | |

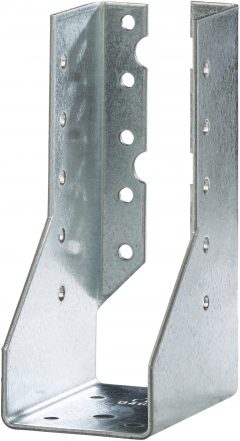

| 5251135I | 2,0 | 135 | 51 | 0,35 | 50 | |
| For wooden beam 56 | ||||||

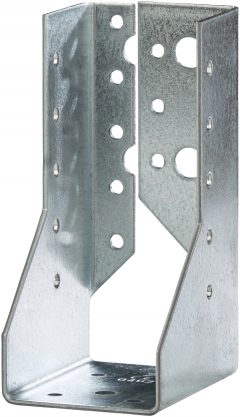

| 5256132I | 2,0 | 132 | 56 | 0,35 | 50 | |

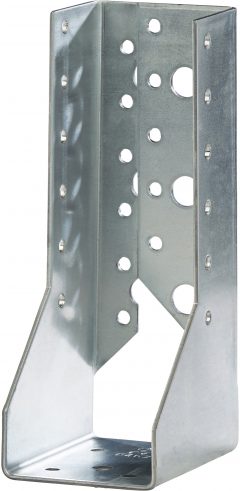

| 5256162I | 2,0 | 162 | 56 | 0,42 | 50 | |

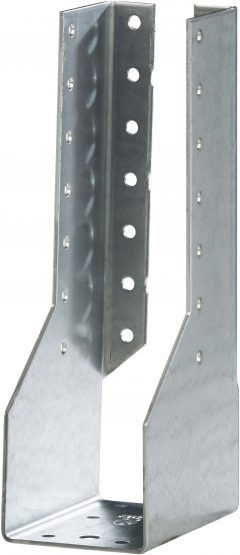

| 5256192I | 2,0 | 192 | 56 | 0,53 | 25 | |
| 5256222I | 2,0 | 222 | 56 | 0,62 | 25 | |
| For wooden beam 60 | ||||||

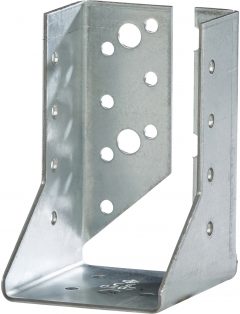

| 5260100I | 2,0 | 100 | 60 | 0,23 | 50 | |

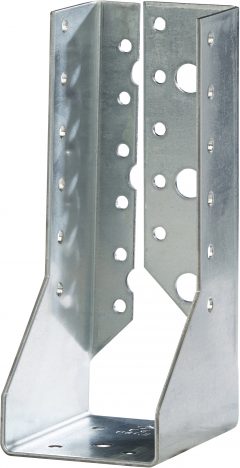

| 5260160I | 2,0 | 160 | 60 | 0,42 | 50 | |

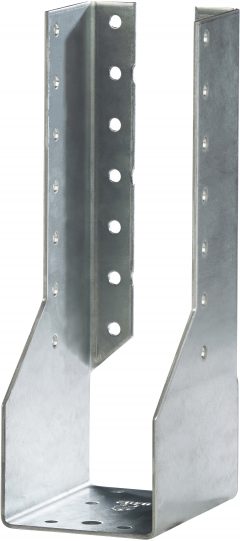

| 5260190I | 2,0 | 190 | 60 | 0,53 | 25 | |
| For wooden beam 76 | ||||||

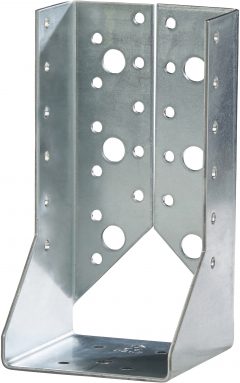

| 5276152I | 2,0 | 152 | 76 | 0,42 | 50 | |

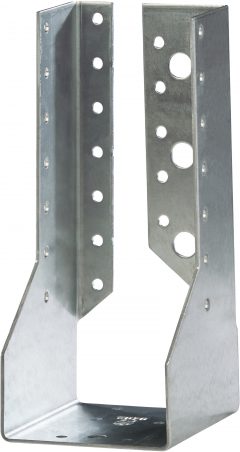

| 5276182I | 2,0 | 182 | 76 | 0,53 | 25 | |
| For wooden beam 80 | ||||||

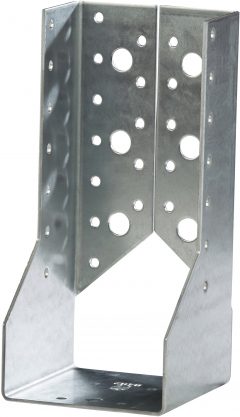

| 5280180I | 2,0 | 180 | 80 | 0,53 | 50 | |
| For wooden beam 90 | ||||||
| 5290145I | 2,0 | 145 | 90 | 0,42 | 50 | |
| 5290175I | 2,0 | 175 | 90 | 0,58 | 25 | |
| 5290205I | 2,0 | 205 | 90 | 0,65 | 25 | |
| For wooden beam 115 | ||||||

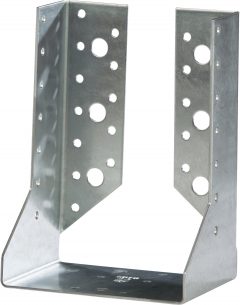

| 5215162I | 2,0 | 162 | 115 | 0,53 | 25 | |

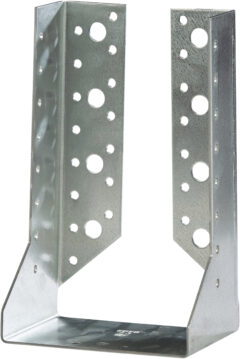

| 5215190I | 2,0 | 190 | 115 | 0,62 | 25 |
