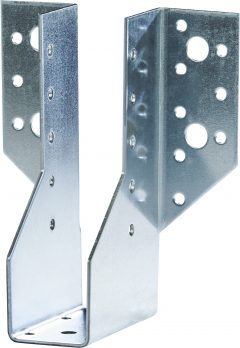

Joist Hanger Combi

Used for fixing beams, wood to wood or wood to concrete.

Our Joist Hanger is equipped with both nail and bolt holes and can be mounted to wood, concrete, concrete or brick. Even with inside flaps as type i.

Material

2,0 mm galvanized steel plate

Bolt holes: Ø 5,0 mm Nail holes: Ø 9,0 mm and 11,0 mm

Joma Joist Hanger is CE approved according to CPR 305/2011. Contained in the documentation.

Article no.	Thickness (mm)	Height (mm)	Width (mm)	Weight	Quantity/box
For wooden beam 36-40 mm
5236142	2,0	142	36	0,38	50
5240099	2,0	99	40	0,24	50
5240110	2,0	110	40	0,26	50
For wooden beam 45 mm
5245096	2,0	96	45	0,24	50
5245108	2,0	108	45	0,26	50
5245137	2,0	137	45	0,37	50
5245168	2,0	168	45	0,43	40
5245197	2,0	197	45	0,54	25
5245228	2,0	228	45	0,65	25
For wooden beam 48 mm
5248095	2,0	95	48	0,24	50
5248136	2,0	136	48	0,37	50
5248166	2,0	166	48	0,43	40
For wooden beam 51 mm
5251093	2,0	93	51	0,24	50
5251105	2,0	105	51	0,26	50
5251135	2,0	135	51	0,37	50
5251164	2,0	164	51	0,43	40
5251195	2,0	195	51	0,54	25
5251225	2,0	225	51	0,65	25
For wooden beam 56 mm
5256192	2,0	192	56	0,53	25
5256222	2,0	222	56	0,65	25
For wooden beam 60 mm
5260100	2,0	100	60	0,26	50
5260130	2,0	130	60	0,37	50
5260160	2,0	160	60	0,43	40
For wooden beam 70-72 mm
5270125	2,0	125	70	0,37	50
5270155	2,0	155	70	0,43	50
5272214	2,0	214	72	0,65	25
For wooden beam 76 mm
5276120	2,0	120	76	0,37	50
5276152	2,0	152	76	0,43	50
5276182	2,0	182	76	0,43	25
For wooden beam 80 mm
5280120	2,0	120	80	0,37	50
5280150	2,0	150	80	0,43	50
5280180	2,0	180	80	0,54	25
For wooden beam 90 mm
5290145	2,0	145	90	0,43	40
5290205	2,0	205	90	0,65	25
For wooden beam 100 mm
5210140	2,0	140	100	0,43	50
5210170	2,0	170	100	0,54	25
5210200	2,0	200	100	0,65	25
For wooden beam 115-140 mm
5215162	2,0	162	115	0,54	25
